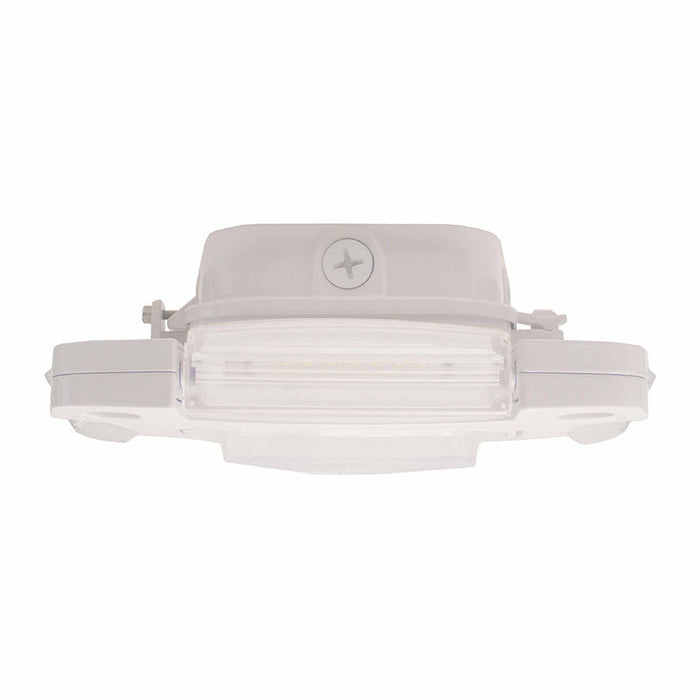

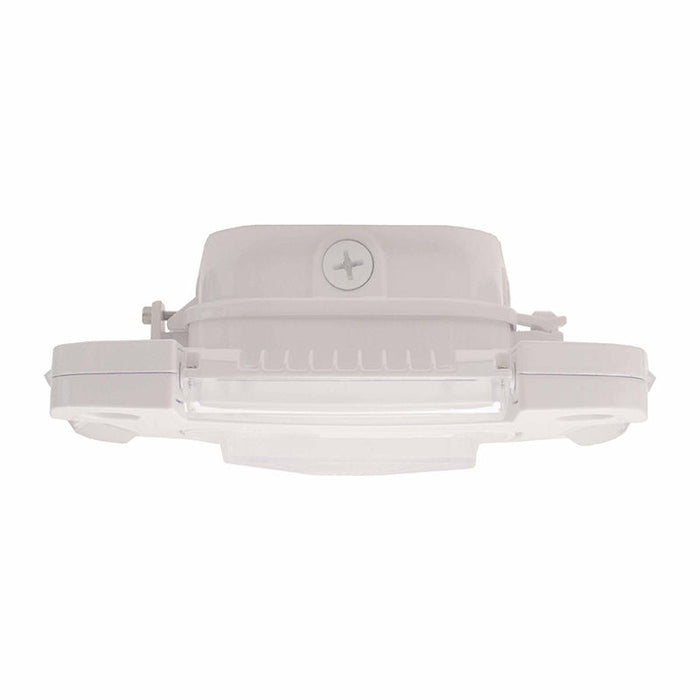

Westgate CDX-55W-50K-WH, Wesgate CDX SERIES 55W Pentalux LED Adjustable Canopy Lights - White

Westgate CDX-55W-50K-WH, Wesgate CDX SERIES 55W Pentalux LED Adjustable Canopy Lights - White

by Westgate
$168.78
$168.78 - $168.78
$168.78
$152.74
$152.74 - $152.74
$152.74

Technical Specifications

  • Die-cast aluminum with White
  • Five 1/2" hubs: 1 on top and 1 on each side
  • Rotatable Size Light Angle: 160
  • Designed for 9 to 16 foot mounting heights
  • LED Type/Brand: SMD2835
  • Factory installed options: sensor, emergency battery backup
  • Dimming: 0~10V Dimming
  • Lens: Prismatic Polycarbonate Lens
  • Lumens: 7250LM
  • Wattage: 55W
  • Input Current: 0.28A
  • Voltage: 120-277VAC 50/60Hz
  • Efficacy: 131LM/W
  • Power Factor: 0.90
  • Operating Temp: -4F to 113F
  • THD: 20%
  • Color Rendering Index: CRI 80
  • Color Temp: 5000K
  • Lifespan: 70,000 hours
  • 7-year warranty
  • IP Rating: IP65, Wet Locations

Applications

  • Ideal for general site lighting, loading docks, warehouses, gas stations, parking areas, garages, complexes and commercial buildings.

Download PDF File

Catalog Page

Specification

Installation Instructions
