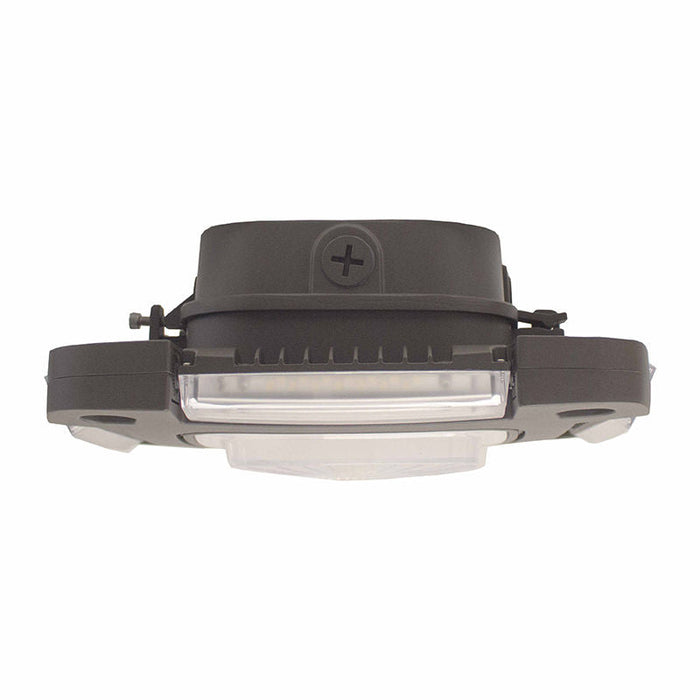

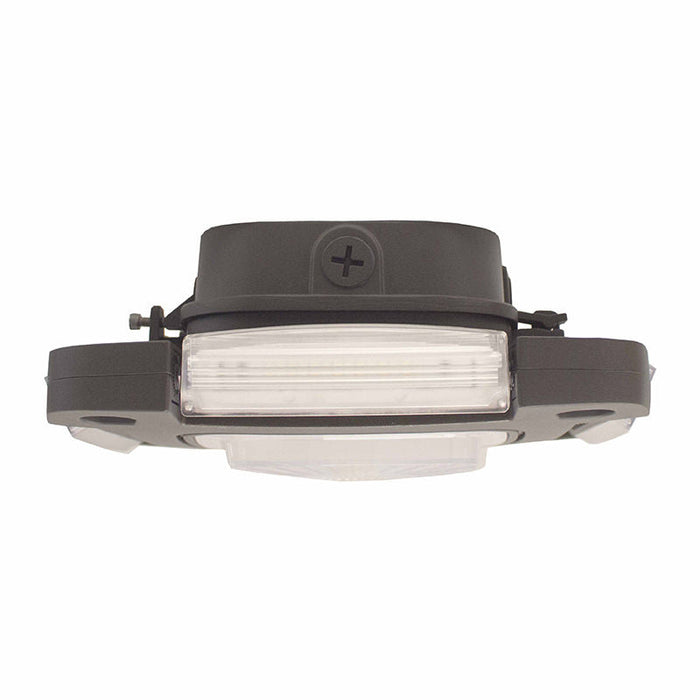

Westgate CDX-35W-40K-BR, Wesgate CDX SERIES 35W Pentalux LED Adjustable Canopy Lights - Bronze

Westgate CDX-35W-40K-BR, Wesgate CDX SERIES 35W Pentalux LED Adjustable Canopy Lights - Bronze

by Westgate
$157.78
$157.78 - $157.78
$157.78
$142.74
$142.74 - $142.74
$142.74

Technical Specifications

  • Die-cast aluminum with Bronze
  • Five 1/2" hubs: 1 on top and 1 on each side
  • Rotatable Size Light Angle: 160
  • Designed for 9 to 16 foot mounting heights
  • LED Type/Brand: SMD2835
  • Factory installed options: sensor, emergency battery backup
  • Dimming: 0~10V Dimming
  • Lens: Prismatic Polycarbonate Lens
  • Lumens: 4600LM
  • Wattage: 35W
  • Input Current: 0.28A
  • Voltage: 120-277VAC 50/60Hz
  • Efficacy: 131LM/W
  • Power Factor: 0.90
  • Operating Temp: -4F to 113F
  • THD: 20%
  • Color Rendering Index: CRI 80
  • Color Temp: 4000K
  • Lifespan: 70,000 hours
  • 7-year warranty
  • IP Rating: IP65, Wet Locations

Applications

  • Ideal for general site lighting, loading docks, warehouses, gas stations, parking areas, garages, complexes and commercial buildings.

Download PDF File

Catalog Page

Specification

Installation Instructions
