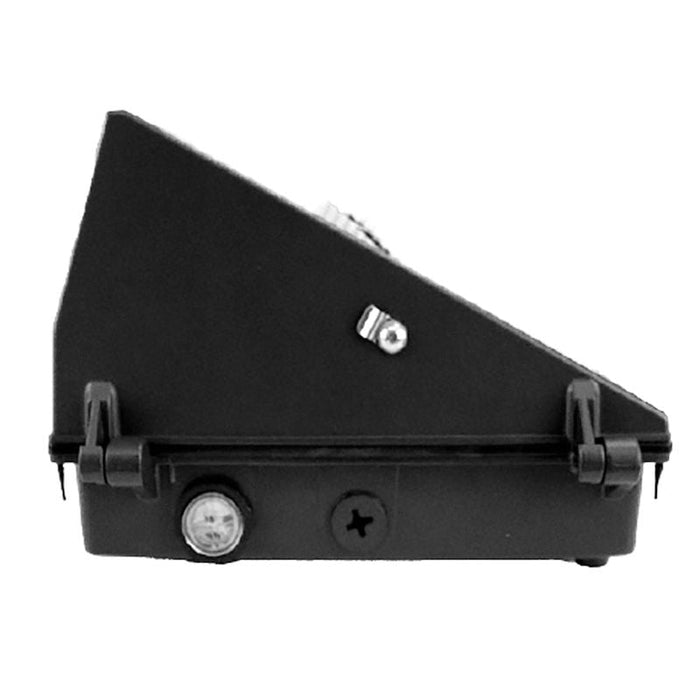

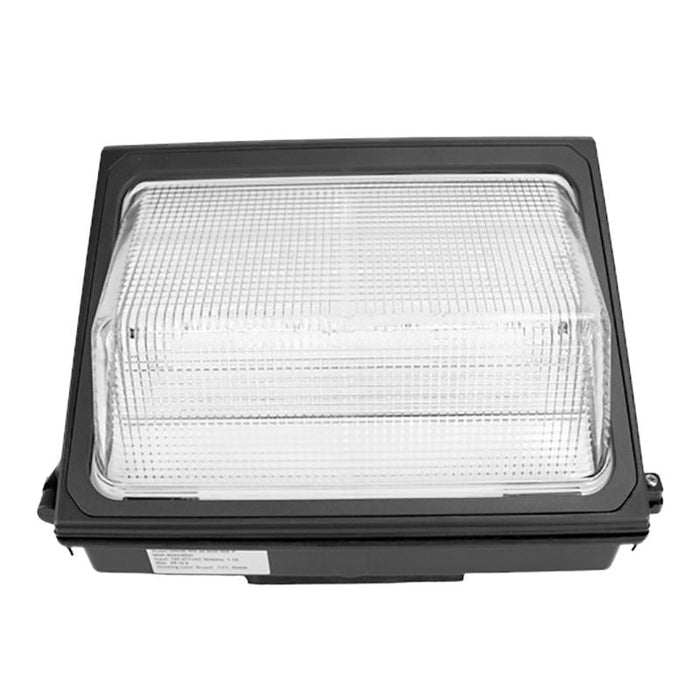

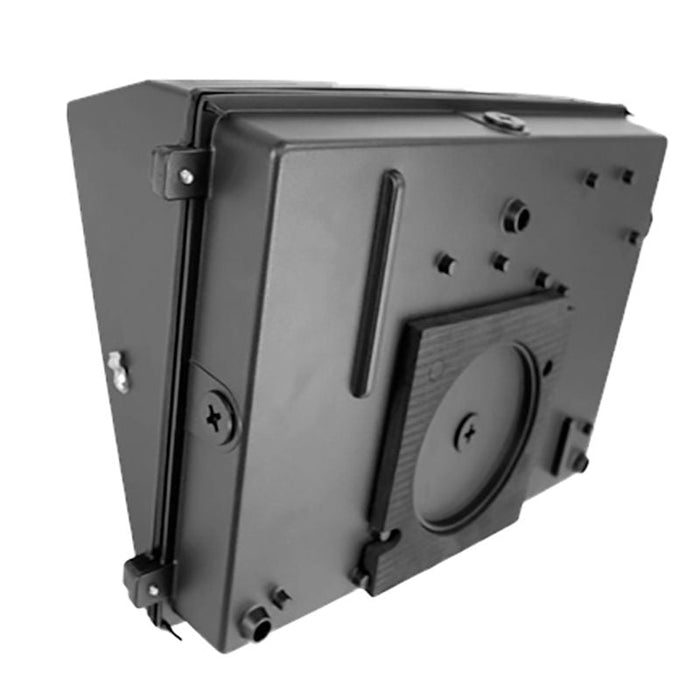

Westgate 85W, 4000K, WMXE-MD-45-85W-MCTP-P, Traditional Wall Pack with Photocell (Photocell Disconnect Switch) - Bronze

Westgate 85W, 4000K, WMXE-MD-45-85W-MCTP-P, Traditional Wall Pack with Photocell (Photocell Disconnect Switch) - Bronze

by Westgate
$166.78
$166.78 - $166.78
$166.78
$147.74
$147.74 - $147.74
$147.74

Technical Specifications

  • Input Wattage: 85W
  • Color Temperature: 4000K
  • Input Voltage: 120-277V AC 50/60Hz
  • Input current: 1.0 A
  • Power factor: 0.9
  • Efficacy: 140 LPW
  • Dimming: 0-10V Dimming
  • Chip: Lumileds LEDs
  • Multi-Power Switch is Inside The Fixture
  • Total Lumens: 21000LM Max.
  • CRI: 70
  • ADC12 Aluminum Heat Sink, Outdoor Powder Coating
  • Lens: Prismatic Borosilicate Glass Lens
  • Same Footprint as Traditional HID Wall Packs
  • Four 1/2� Hubs: 1 Top. 1 on Each Side, 1 Rear
  • Mounting: Wall Mounting
  • Operating Temperature: -40°F ~ 104°F
  • Lifespan: 70000 Hrs.
  • IP rating: IP65, Wet Locations

Applications

  • Ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas.
  • Replace existing HID wall packs
  • Great for use with photocell
