Technical Specs

  • X-Gen Type B, AC Direct (Ballast Override)
  • Connect One End or Both Ends (Dual Function)

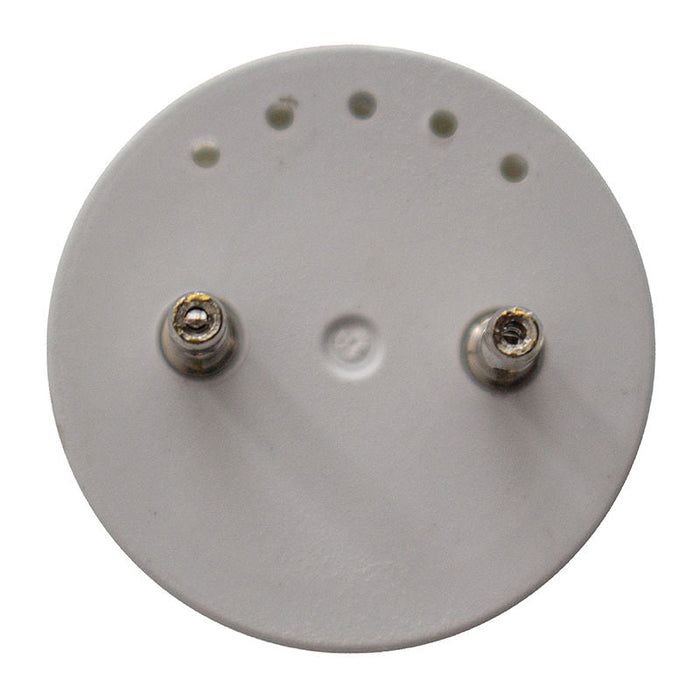

  • Base Type: G13
  • Glass Lens: better transparency and thermal conductivity than plastic
  • Dimming: Non-Dimmable
  • Lumens: 2160LM Max.
  • Wattage: 15W
  • Voltage: 120-277V, 50/60Hz
  • Efficacy: 120LPW
  • Beam Angle: 120°
  • Power Factor: 0.90
  • Operating Temp: -13°F to 113°F
  • Total Harmonic Distortion: <20%
  • Color Rendering Index: CRI 80
  • Color Temp: 4000K
  • Lifespan: 50,000 hours
  • 5-year warranty
  • IP Rating: IP20 (Indoor)

  Applications

  • Direct Fit 4 T8 LED tubes do not burn out easily and provide bright and even lighting to schools, office spaces, retail stores and storage rooms.

Download PDF File

Specification

Installation Instruction
